Bruder 1:16 Scale Linde Forklift H30D - RC conversion trial....

Post by boolean21 on Wed 9 Jul 2014 - 22:33

always wanted a RC Forklift..... but the ready ones are way over my tiny budget... Sad Sad Sad Sad Sad

then... came across the Bruder forklift!

it's 1:16 scale and very detailed....
thanks to bro babyboy for sharing the site.... ordered and delivered within 24hrs...  Twisted Evil Twisted Evil Twisted Evil Twisted Evil


here are some photos of the little toy...



scale wise, it's slightly smaller than the semi-trucks, but close enough i hope....
now... will try to convert it to RC.... wish me luck....  Razz Razz Razz

step 1.... tear it apart and explore.....



got this universal gearbox from Tamiya....



and built it up....

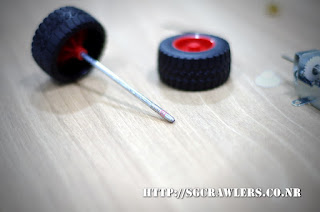

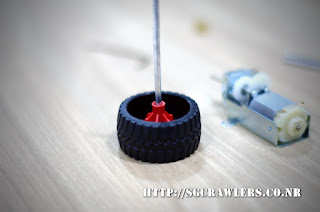

spent lots of time trying to remove the wheel from the shaft....  Evil or Very Mad Evil or Very Mad Evil or Very Mad Evil or Very Mad
this little toy's quality is real good.... had a really hard time using different tools.... brute force.... etc... and the wheel still doesn't come apart from the shaft....   affraid






finally.... managed to remove the wheel....
the end of the shaft has this "one way" grooves.... so once it is assembled into the wheel, it's really not easy to remove...  Laughing  Laughing





fixed up the tranny onto the wheel shaft...






and test fitted onto the forklift chassis....









fits nicely..... so even if the forklift doesn't "lift"... i still get the consolation prize of a RC forklift without lift! Very Happy Very Happy Very Happy


next.... trying to use a micro servo to control lifting mechanism....

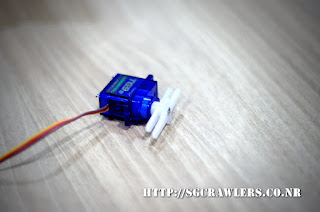

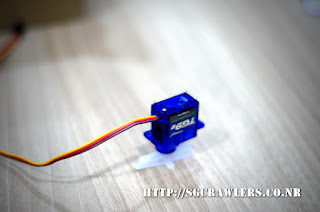

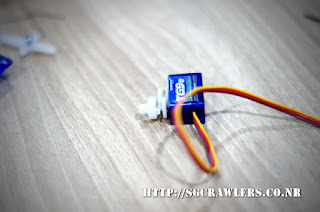

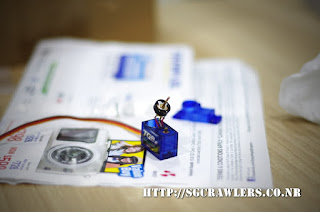

disassembled it...








will be converting it to work as a micro servo winch for the lifting...








seems like the output gear is connected directly to the potentiometer's shaft....




so.... i got 2 options....
option 1: use 2 resistors to fix the centre point....
option 2: turn the pot to the middle position and glue it up! Very Happy

still not sure if the micro servo is strong enough...... so i chose the easy way out..... glue up the pot in the middle position! Very Happy






that's all for now....
thanks for looking!


Last edited by boolean21 on Tue 29 Sep 2015 - 20:04; edited 1 time in total

_________________
My Blogs: MyHoncho Blog | Boolean21 RC Blog
Youtube: SGCrawlers RC Channel | BooleanRC Video Channel
Facebook: SGCrawlers FB Page  | Boolean21 FB Page
Instagram: http://instagram.com/SGCrawlers
Twitter: http://twitter.com/SGCrawlers
avatar
boolean21
Crawler

Posts : 4989
Join date : 2011-08-18
Location : Deep inside the Jungle

View user profile Http://youtube.com/MyHonchoSG

Back to top Go down

Re: Bruder 1:16 Scale Linde Forklift H30D - RC conversion trial....

Post by boolean21 on Thu 10 Jul 2014 - 21:02

continued with the 360 degrees servo....

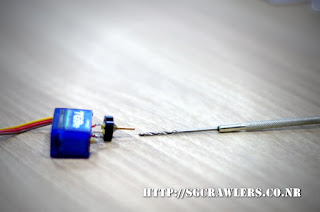

managed to find a hand drill in the toolbox slightly bigger than the pot's output shaft....
