My one and only Crawler, upgraded and vastly improved !

+3
Teck
wyetuck88
Ezekiel Freshmen
7 posters

Go down

My one and only Crawler, upgraded and vastly improved ! Empty My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 16 Sep 2012 - 19:38

A motor on axle style rock crawler. Driven by 3 High torque NXT motors giving it more than 16Nm torque. Traxxas MUD tires, 3kg servo, Spektrum receiver, and Futaba DC speed controller.

Specs
Weighs 1.2 kg way lighter than ur usual builts.
Wheel base 12 inch
Length 16 inch
Width 8.4 inch
Height 8.5 inch
Ground clearance 4.6 inch ! much much higher than yours truely !
Wheel diameter 4.3 inch / 110mm / 1.9 tires

Lithium polymer Nanotech 2s 1000mAh
Futaba MC230CR

My one and only Crawler, upgraded and vastly improved ! 1347790276m_DISPLAY

My one and only Crawler, upgraded and vastly improved ! 13477904441_DISPLAY

My one and only Crawler, upgraded and vastly improved ! 1347788511m_DISPLAY

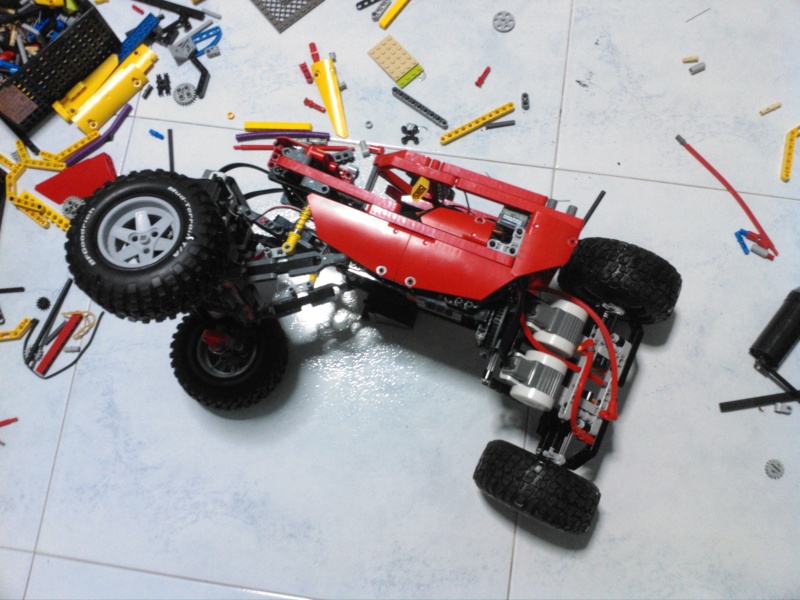

Front 4 Link joint for extreme articulation
My one and only Crawler, upgraded and vastly improved ! 1347788490m_DISPLAY

Simple Independent suspension, average articulation but twice the amount of torque !
My one and only Crawler, upgraded and vastly improved ! 1347790720m_DISPLAY

Front motor on axle with 3kg Servo.
My one and only Crawler, upgraded and vastly improved ! 1347790742m_DISPLAY

My one and only Crawler, upgraded and vastly improved ! 1347790751m_DISPLAY

Front and Rear portal axles.
My one and only Crawler, upgraded and vastly improved ! 1347790759m_DISPLAY

My one and only Crawler, upgraded and vastly improved ! 1347790769m_DISPLAY

All differential locked it just keeps going. This is actually my 5th or 6th rebuilt with the previous ones being driven by a hobby Brushless motor. However the live axles kept breaking under heavy torque and had to go for direct drive, MOA.


<u>HISTORY of build</u>
Here are the live axle versions of the build powered by a 28mm 905kv brushless motor. Plenty of torque but power loss from live axles and gears made unreliable.

My one and only Crawler, upgraded and vastly improved ! 1347791738m_DISPLAY
My one and only Crawler, upgraded and vastly improved ! 1347791759m_DISPLAY
My one and only Crawler, upgraded and vastly improved ! 1347791786m_DISPLAY
My one and only Crawler, upgraded and vastly improved ! 1347791769m_DISPLAY
My one and only Crawler, upgraded and vastly improved ! 1347791749m_DISPLAY


Thanks for viewing !!

With my new found knowledge to control the motors using a hobby speed controller, I wonder how humongous my next build might me (:

Can anyone tell me how I should test my rig so i can maybe follow one of the trials if you guys don't mind an unusual trial truck ?


Last edited by Ezekiel Freshmen on Sat 22 Sep 2012 - 21:49; edited 1 time in total

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by wyetuck88 Sun 16 Sep 2012 - 20:02

Very nice, one of its kind. How much is the whole set up?
wyetuck88
wyetuck88
Crawler

Posts : 311
Join date : 2012-05-26

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Teck Sun 16 Sep 2012 - 20:05

Lego Shocked
Teck
Teck
Crawler

Posts : 552
Join date : 2011-09-27

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 16 Sep 2012 - 20:24

wyetuck88 wrote:Very nice, one of its kind. How much is the whole set up?
Well, some specific parts came from 2 lego sets and rest from my older sets. If count by sets = more than 1K, if by parts used then maybe about 200 over w/o receiver, ESC, Servo and tires. All in All I paid only $40 for the Traxxas tires, NTC hobbies just started Traxxas products ! must GO !

Everything included would be around $400+, but heck price isn't the issue here, I can custom build it very very easily.

Teck wrote:Lego Shocked
Don't play play ~ it can crawl okay ! just isn't water proof Sad
Lego might be flimsy but with the right design and stuff, plus it's made from high quality ABS plastic, heh heh heh. Comp rig !

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Liew Sun 16 Sep 2012 - 20:52

Wow !!!!!
Can joint trail with us ? Very interesting !
Liew
Liew
Crawler

Posts : 580
Join date : 2011-08-23

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 16 Sep 2012 - 21:00

Liew wrote:Wow !!!!!
Can joint trail with us ? Very interesting !

I want to, but i need to do more testing and put another motor on become 4 motor, ltr not working den xia suay lol. when do u guys usually trail ? I can only make it on weekends, serving NS now .

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Liew Sun 16 Sep 2012 - 21:10

We trail every Sunday !
Wellcome Very Happy
Liew
Liew
Crawler

Posts : 580
Join date : 2011-08-23

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by wyetuck88 Sun 16 Sep 2012 - 21:25

$400, icic got to be careful with the technic Lego set, they are prone to cracking after some time, mine did after more then 5 years.
wyetuck88
wyetuck88
Crawler

Posts : 311
Join date : 2012-05-26

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 16 Sep 2012 - 23:16

wyetuck88 wrote:$400, icic got to be careful with the technic Lego set, they are prone to cracking after some time, mine did after more then 5 years.

Don't stress it too much can le. Spares are like 10, 20 cents up to 5$ only, haha. most importantly is to keep it light.


@Liew, is there a page to check where the next one is at ?

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Mon 17 Sep 2012 - 16:22

Will it be advantages for trail or crawl if I could control the 4 motors individually? Any possible scenarios you've came across that might have benefitted from it ? Cuz I'm weighing the benefits with added complexity and weight.

I've already got plans and design rdy for 4 MOA, 1 motor per wheel, which in a way acts like an opened and locked differential at the same time.

Best of both worlds !

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by boolean21 Mon 17 Sep 2012 - 16:37

welcome on board..

interesting to see a lego crawler.... Smile

with 4 MOA, one motor per wheel, first thing that come to my mind is that you can do stationary 360degrees turn... Smile

boolean21
boolean21
Crawler

Posts : 5035
Join date : 2011-08-18
Location : Deep inside the Jungle

https://www.youtube.com/MyHonchoSG

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by coldman28 Mon 17 Sep 2012 - 20:51

let trail at Bukit Batok Little Quilin to try your set up.
coldman28
coldman28
Crawler

Posts : 197
Join date : 2011-08-19
Age : 54
Location : Woodland

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Teck Mon 17 Sep 2012 - 21:17

coldman28 wrote:let trail at Bukit Batok Little Quilin to try your set up.
O yes best place i know Twisted Evil
Teck
Teck
Crawler

Posts : 552
Join date : 2011-09-27

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Mon 17 Sep 2012 - 22:41

boolean21 wrote:welcome on board..

interesting to see a lego crawler.... Smile

with 4 MOA, one motor per wheel, first thing that come to my mind is that you can do stationary 360degrees turn... Smile


Thanks, 360° turn might be possible, depends if the terrain allows the tires to slip.

coldman28 wrote:let trail at Bukit Batok Little Quilin to try your set up.

When ? I have friday and sat to rebuild and upgrade.

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by boolean21 Tue 18 Sep 2012 - 11:34

where do you buy the lego spares from? do they sell individual bricks / accessories?
boolean21
boolean21
Crawler

Posts : 5035
Join date : 2011-08-18
Location : Deep inside the Jungle

https://www.youtube.com/MyHonchoSG

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Tue 18 Sep 2012 - 14:16

boolean21 wrote:where do you buy the lego spares from? do they sell individual bricks / accessories?

Secret chamber singapore sells individual parts, subjected to availability. They do have quite a lot of them. Gears, axles, beems.. Axles are the cheapest. Sometimes they might have unique parts too.

There are even metal aftermarket parts online too.. Kinda cool.

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by boolean21 Tue 18 Sep 2012 - 14:31

Ezekiel Freshmen wrote:
boolean21 wrote:where do you buy the lego spares from? do they sell individual bricks / accessories?

Secret chamber singapore sells individual parts, subjected to availability. They do have quite a lot of them. Gears, axles, beems.. Axles are the cheapest. Sometimes they might have unique parts too.

There are even metal aftermarket parts online too.. Kinda cool.

ok thanks. Smile
boolean21
boolean21
Crawler

Posts : 5035
Join date : 2011-08-18
Location : Deep inside the Jungle

https://www.youtube.com/MyHonchoSG

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Wed 19 Sep 2012 - 15:06

Do you guys use any ackerman steering ? Mine currently has reversed ackerman steering.

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sat 22 Sep 2012 - 21:43

Upgrade !! Version 3. Renamed to The BEAST !

New Specs
Chassis Tube Type 4x MOA
Max Articulation 110 Degrees !!!
Front suspension 4 Link Type
Rear suspension Pendulum Type

Weight 1.4 kg from (1.2kg)
Wheel base 13/14 inch depending on suspension (12 inch)
Length 17/18 inch (16 inch)
Width 10 inch (8.4 inch)
Height 9 inch (8.5 inch)
Ground clearance 5.2 inch (4.6 inch) ! much much higher than yours truely !
Wheel diameter 4.3 inch / 110mm / 1.9 tires

Lithium polymer Nanotech 2s 1000mAh
Futaba MC230CR

My one and only Crawler, upgraded and vastly improved ! Img_2010

My one and only Crawler, upgraded and vastly improved ! Img_2011

My one and only Crawler, upgraded and vastly improved ! Img_2012

My one and only Crawler, upgraded and vastly improved ! Img_2013

My one and only Crawler, upgraded and vastly improved ! Img_2014

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by wyetuck88 Sat 22 Sep 2012 - 23:23

nice. Yours can come out with many different version as and when you like, ours cant.
wyetuck88
wyetuck88
Crawler

Posts : 311
Join date : 2012-05-26

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 23 Sep 2012 - 1:59

wyetuck88 wrote:nice. Yours can come out with many different version as and when you like, ours cant.

Yea, the only downside for mine is the top speed. currently it's only around 2 mph.
If I got robot servo motors top speed maybe 10mph. by then i'll probably make the whole thing out of metal.

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 23 Sep 2012 - 12:50

alright, although it didn't match the rest of the rigs it was still a success. today's run at guilin lake was to test specific parts and build techniques. The next rig will incorporate the good parts leaving out the bad parts.

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by wyetuck88 Sun 23 Sep 2012 - 14:21

Good work. Saw your crawler today it's beautiful. I think you have to strengthen the joints, they pop out when the crawler took a fall.
wyetuck88
wyetuck88
Crawler

Posts : 311
Join date : 2012-05-26

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by boolean21 Sun 23 Sep 2012 - 15:52

i think your dad is supportive of you getting a trail truck... Smile

get an scx10... Smile leave the lego for light duties.. Smile
thinking of getting a lego semi truck...!
boolean21
boolean21
Crawler

Posts : 5035
Join date : 2011-08-18
Location : Deep inside the Jungle

https://www.youtube.com/MyHonchoSG

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Ezekiel Freshmen Sun 23 Sep 2012 - 17:32

boolean21 wrote:i think your dad is supportive of you getting a trail truck... Smile

get an scx10... Smile leave the lego for light duties.. Smile
thinking of getting a lego semi truck...!

Agree, lego can go only so much. I like the dingo kit however my wallet prefers the Ax10 Ridgecrest.
I mean i can get the Ridge and self mod it till it looks like a scale truck. what do you think ? I asked and none of you guys have the Ridge yet.

Which online store do you guys usually buy from?

Ezekiel Freshmen
Crawler

Posts : 95
Join date : 2012-08-24

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by ket2175 Sun 23 Sep 2012 - 22:51

Hi we usually order our trail truck at Tower hobbies. Get a SCX10 , u wont go wrong with it. Very Happy
ket2175
ket2175
Crawler

Posts : 1719
Join date : 2011-10-05
Age : 43
Location : Bukit Batok East

Back to top Go down

My one and only Crawler, upgraded and vastly improved ! Empty Re: My one and only Crawler, upgraded and vastly improved !

Post by Sponsored content


Sponsored content


Back to top Go down

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
